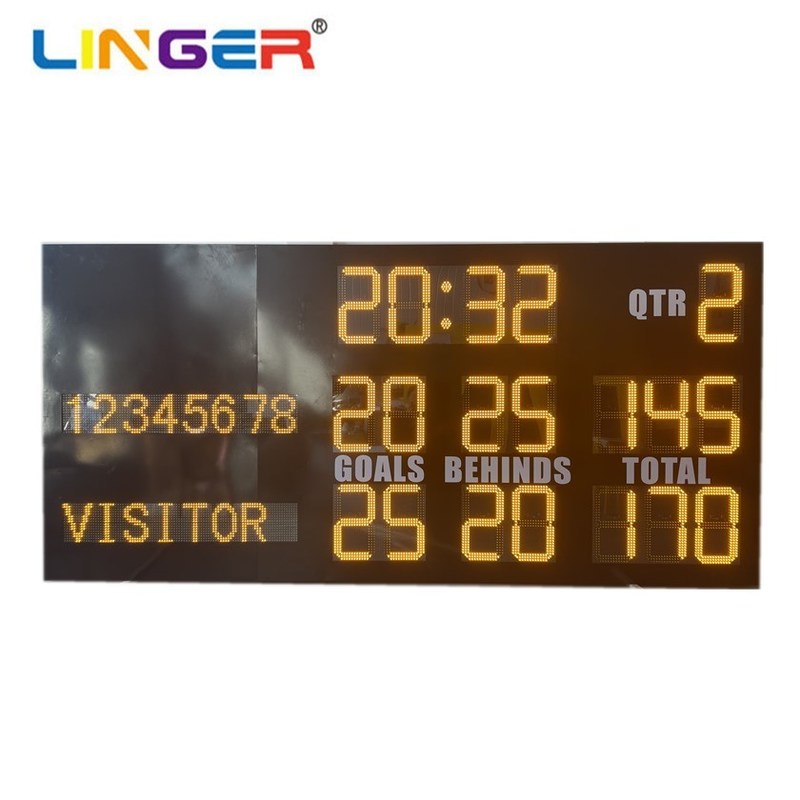

Premium Customizable Australia AFL Sports LED Scoreboard
Produktdetails:
| Herkunftsort: | Jiaxing, Zhejiang, China (Festland) |
| Markenname: | LG-Linger |
| Zertifizierung: | CE / ROHS |
| Modellnummer: | LG-AFL19D-VTN-y |
Zahlung und Versand AGB:
| Min Bestellmenge: | 1 Einheit |
|---|---|
| Preis: | negotiable |
| Verpackung Informationen: | 1 Einheit in 1 Karton / Holzkoffer |
| Lieferzeit: | 7 - 10 Tage |
| Zahlungsbedingungen: | T/T, Western Union, Paypal |
| Versorgungsmaterial-Fähigkeit: | 100units/ pro Monat |
|
Detailinformationen |
|||
| LED -Farbe: | Gelb | Name des Teams: | Max 8 Buchstaben |
|---|---|---|---|
| Rahmenmaterial: | Eisen / Stahl / Aluminium | Betriebsart: | PVC-Knopfbox - drahtloser Typ |
| Acrylbrett: | 5 mm Dicke | UV -Schutz: | Frontglasbrett |
| Verwendung: | Innen- und Außenbereich | Eingangsspannung: | 110 V bis 250 V |
Produkt-Beschreibung
Elevate the Australian Rules Football experience with our Premium Customizable AFL LED Scoreboard, engineered specifically for the dynamic demands of the game across clubs, schools, and professional venues nationwide. Designed with high-visibility, all-weather LED displays, this scoreboard delivers crisp real-time updates for scores, goals, behinds, quarters, and time—all easily controlled via an intuitive remote or mobile app. What sets it apart is its deep customizability: from AFL-specific graphics and team colours to branded logos and scalable sizes, every element can be tailored to reflect your club’s identity. Durable, energy-efficient, and built to perform under the Australian sun, this scoreboard isn’t just functional—it’s a statement of professionalism and pride.
DIGIT SIZE OPTION
| DIGIT SIZE | DIGIT HEIGHT(mm) | DIGIT WIDTH(mm) | LED QTY(pcs) | VOLTAGE |
|---|---|---|---|---|
| 4'' | 124 | 75 | 42 | DC5V |
| 6'' | 161 | 103 | 64 | DC5V |
| 8'' | 201 | 119 | 98 | DC5V/12V |
| 10'' | 254 | 152 | 140 | DC5V/12V |
| 12'' | 304 | 177 | 182 | DC5V/12V |
| 15'' | 381 | 216 | 245 | DC5V/12V |
| 16'' | 412 | 235 | 350 | DC12V |
| 20'' | 500 | 281 | 434 | DC12V |
| 24'' | 600 | 350 | 581 | DC12V |
| 30'' | 750 | 438 | 840 | DC12V |
DATA SHEET
| Feature | Specification |
|---|---|
| Digit Color Option (Single Color) | Red /Green/Yellow/White/Blue |
| Digit Size Option | 4''/6''/8''/10''/12''/13''/15''/16''/20''/24''/30'' |
| Product Option | With Iron Steel Cabinet or Only Component |
| Led Brightness | 4000mcd - 9000mcd |
| Led Life | > 100000 hours |
| Digit PCB | FR4 |
| Digit PCB Thickness | 1.6mm |
| Wireless Controller | Wireless Controller Remote / PC software |
| Communication Option | RF (470mhz / 433mhz) / RS485 |
| Wireless Range | >250meters |
| Brightness Control | 6 Levels |
| Wireless Controller Remote Power | 1.5V AAA Alkaline battery / 9V Battery |
| Front Acrylic Board | Thickness 5mm -9mm |
| Iron Cabinet | Thickness 1.2mm Steel Plate |
| Input Voltage | AC110V ~ AC220V 50/60HZ |
| Digit DC Power | DC5V / DC12V |
| Power Consumption | < 60Watts |
| Painting of Iron Case | Outdoor anti-fading and anti-rust spray paint |
| Operating Temperature | -20°C to +80°C |
| Waterproof | IP67 |
| Warranty | 1-2Years |
FAC
Q1: Can the scoreboard be tailored to display specific AFL metrics that are important to our club?
A: Absolutely. Our scoreboard is pre-programmed with core AFL data points like goals, behinds, total points, and quarter time. Beyond that, it can be fully customized to display additional metrics such as tackles, inside 50s, or time-on, perfectly aligning with your team's analytical needs.
Q2: How customizable is the physical appearance of the scoreboard to match our team's branding?
A: Extremely customizable. We offer a wide range of options for the exterior frame, including custom colour matching to your team's official colours. Furthermore, your club's logo can be prominently and permanently displayed on the unit, often at no extra cost, ensuring a seamless brand integration.
Q3: Is the display itself adaptable for optimal visibility in bright Australian conditions?
A: Yes, this is a key feature. The high-brightness, anti-glare LEDs are specifically chosen for excellent visibility under the harsh Australian sun. Additionally, the size and layout of the digits can be customized during the ordering process to ensure perfect readability from anywhere on the oval or in the grandstand.
Q4: What makes the scoreboard's operation suitable for volunteers or staff with varying technical skills?
A: The system is designed for simplicity. It comes with an intuitive handheld remote, clearly labelled buttons. This allows anyone, from a parent volunteer to a staff member, to operate the scoreboard confidently with minimal training.
Key Features:
-
Unmatched Customization for a Truly Professional Presence
Beyond simple score tracking, our scoreboard offers deep branding and functional customization. You can incorporate your club's official colours, permanently display your logo, and even tailor the metrics shown (e.g., inside 50s, clearances) to meet specific team or league requirements. This transforms the scoreboard from a functional tool into a powerful symbol of your club's identity and professionalism.
-
Superior All-Weather Visibility Built for Australian Conditions
Engineered with high-intensity, anti-glare LED technology, the display guarantees crystal-clear readability even under the bright Australian sun. Coupled with a robust, weatherproof housing designed to withstand rain, heat, and dust, it delivers reliable, year-round performance for every match, ensuring players and spectators never miss a moment of the action.
-
Effortless Operation for Volunteers and Staff
We believe professional results shouldn't require complex processes. The scoreboard is managed via an intuitive handheld remote with a user-friendly interface. This allows coaches, volunteers, or staff with minimal training to operate it confidently and error-free, reducing pressure and enhancing the overall match-day experience.
